Pronovost Inverted Commercial Series
Tractor PTO Snow Blowers

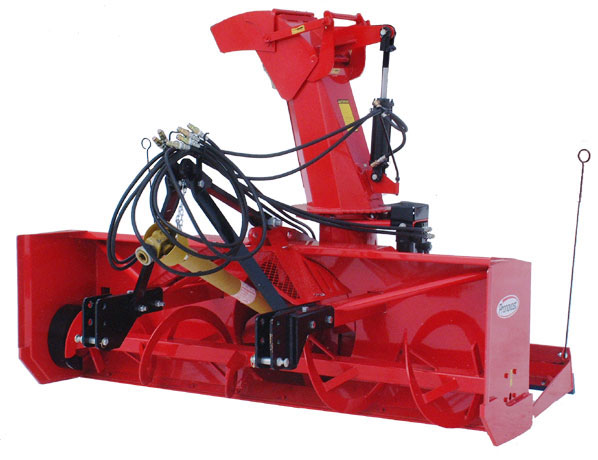

P-INV Series Inverted Snow Blowers
|
|
P-860-IV, P-920-IV & P-920-IV-102
Options
|

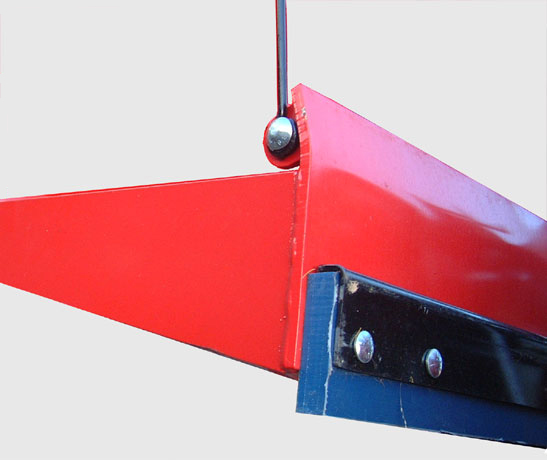

Rear Mount Scraper Blade with TIVAR Plow Blade |

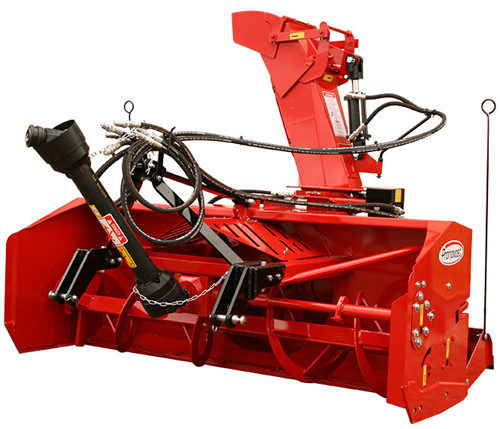

Model P-INV-74 Shown |

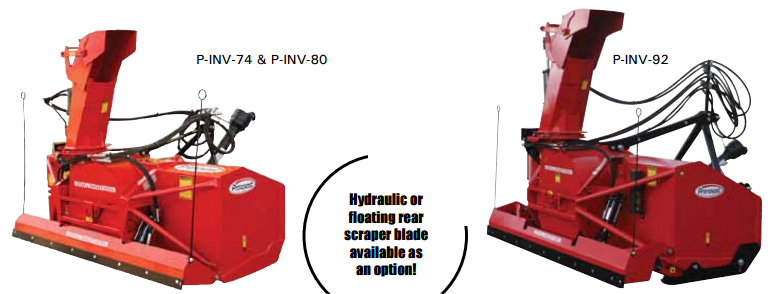

P-INV-74 & P-INV-80
Included in Base Price:
|
P-INV-92 & P-INV-92-102
Included in Base Price:
|

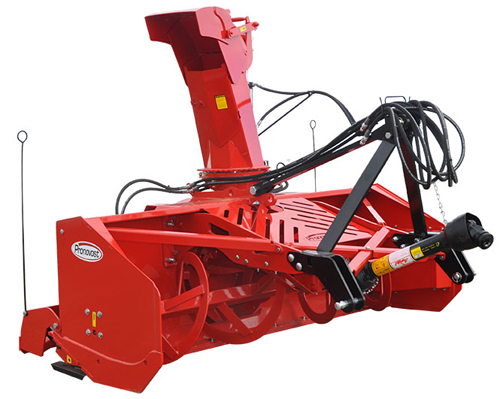

Model P-INV-92 Shown |
PRONOVOST INVERTED SERIES SNOW BLOWER SPECIFICATIONS | |||||||||
MODEL | P-860-IV | P-920-IV | P-920-IV-102 | P-INV-74 | P-INV-80 | P-INV-92 | P-INV-92-102 | ||
Recommended HP | 50 - 75 HP | 40 - 70 HP | 75 - 95 HP | ||||||
Working Width | 86" | 92" | 102" | 74" | 80" | 92" | 102" | ||
Cutting Height | 30-1/2" | 28" | 34" | ||||||
Height - Chute Base | 35" | 30" | 38" | ||||||
Impeller Diameter | 28" | 26" | 30" | ||||||
Depth of Drum | 12" | 9" | 12" | ||||||
Impeller Blade | 4 Curved Blades | ||||||||
Number of Shear Bolts | 2 (Impeller & Auger) | ||||||||
Size of Impeller Shaft | 1-9/16" (40 mm) | ||||||||
Impeller RPM/strong> | 540 | ||||||||
Number of Auger | 1 (16" Diameter) | 1 (21-1/4" Diameter) | |||||||
Drive Chain | No. 80 | No. 60 | No. 80 | ||||||
Scraper Blade Replaceable | Standard Steel (Reversible) | Standard Steel (Non-Reversible) | Standard Steel (Reversible) | ||||||
Chute | Semi-Industrial with Cylinder for Adjustment of Deflector | Semi-Industrial with Greasable Hinges, Access Panel & Cylinder for Adjustment of Deflector | |||||||
Chute Rotation | Hydraulic with Motor & Cushion Valve | Hydraulic with Motor & Cushion Valve, MLH-125 Included | Hydraulic with Motor & Cushion Valve, MLH-250 Included | ||||||
PTO | Category T60 | Category T50 | Category T60 | ||||||
Auger Bearings | 1-1/2" | 1-1/4" | 1-1/2" | ||||||
Hitch | Category 2 - 35-1/2" c/c | Category 1 - 28-1/2" c/c | Category 2 - 34-1/4" c/c | ||||||
Hose Support | Included | ||||||||
Approx. Weight - Rear Mount Scraper Blade & Cylinder. | 221 lbs. | 229 lbs. | 242 lbs. | 90 lbs. | 94 lbs. | 154 lbs. | 162 lbs. | ||
Approx. Weight - With Chute & Cylinder | 1,474 lbs. | 1,530 lbs. | 1,590 lbs. | 937 lbs. | 957 lbs. | 1,887 lbs. | 1,946 lbs. |
